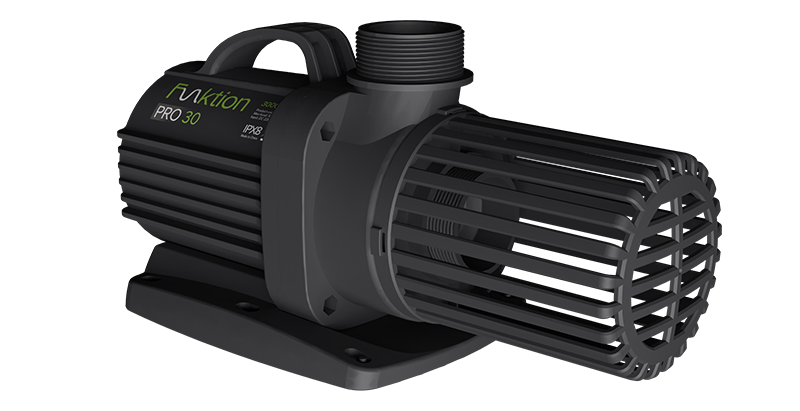

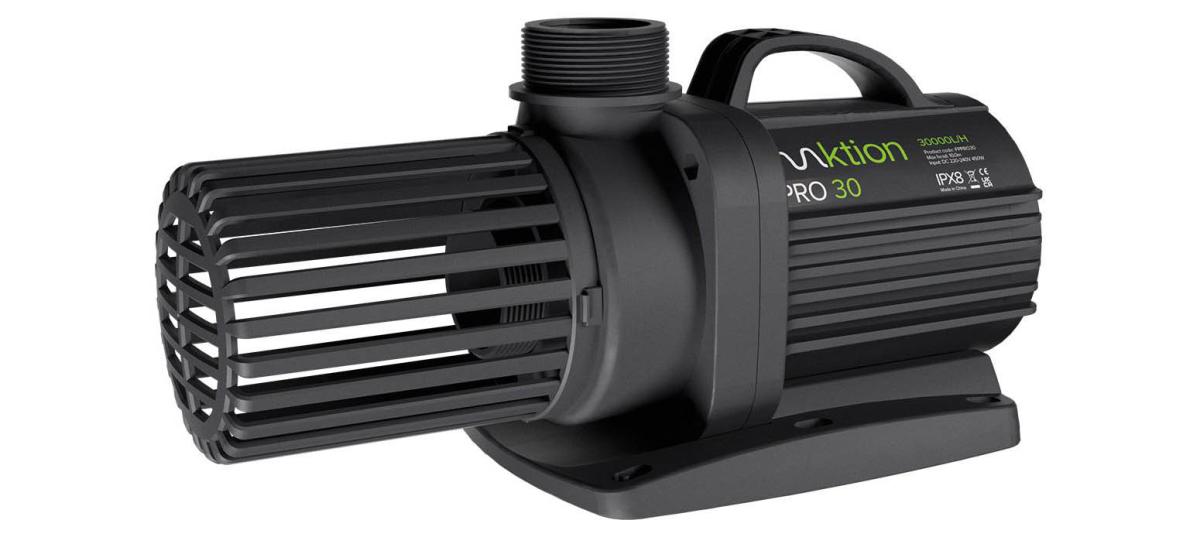

Funktion Pro 30 Multi-Function Pump
Funktion Pro 30 Multi-Function Pump
Professional multi-function DC pump with unique digital controller
, featuring 3 wave functions and a constant flow mode.
For use in salt or freshwater the Funktion PRO30 is specifically designed to be used on larger systems as a return pump or for closed loop circulation. The durable components and housing make the pump suitable for external or submerged use.
Safe for salt or freshwater use, the sine
wave technology and low voltage motor offers ultra-low running noise
,
low heat output and energy efficiency.
Features
- Permanent magnet brushless motor
- High strength , impact resistant housing
- Titanium housing screws
- Wear resistant ceramic shaft and SIC ceramic bearings
- Low running noise
- Energy efficient motor
- Suitable for salt or freshwater
- Detachable footplate with anti-vibration silicone rubber feet
- 10M Cable between pump and controller
- 2” BSP threaded inlet and outlet
Flexible Installation Options
- Can be installed externally or submerged
- Pump outlet can be positioned to face upwards, left, or right
- Suction cage provided for submerged use
- Solvent weld unions for 50 and 62mm rigid pipe included in box

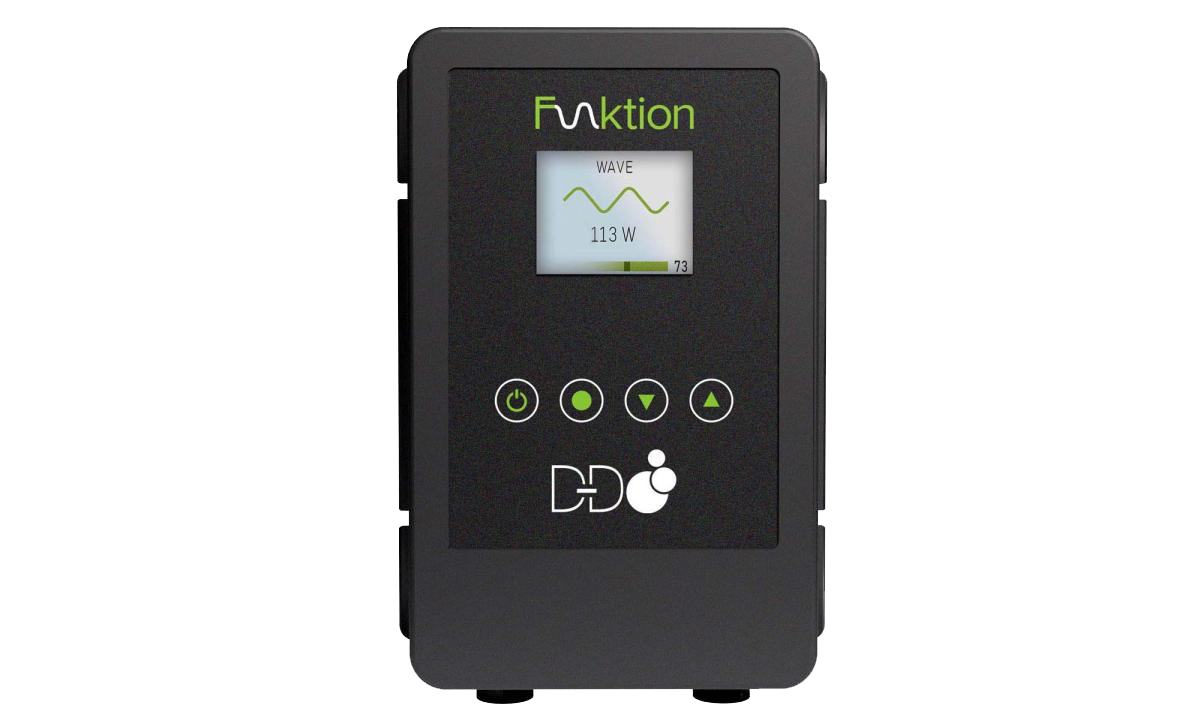

Controller Features
- Unique multi-function digital controller with touch button control pad
- Back-lit LCD colour display with adjustable screen brightness
- Multi-language display with screen saver
- 4 different flow modes:
Pump mode: with adjustable constant flow rate
Wave mode: with adjustable frequency and flow rate
Pulse mode: with adjustable interval times and flow rate
Storm mode: with variable frequency and flow rate - Adjustable min and max power setting in wave modes (30-100)
- Feed mode and on/off functions
- Run-dry detection with automatic shutdown function

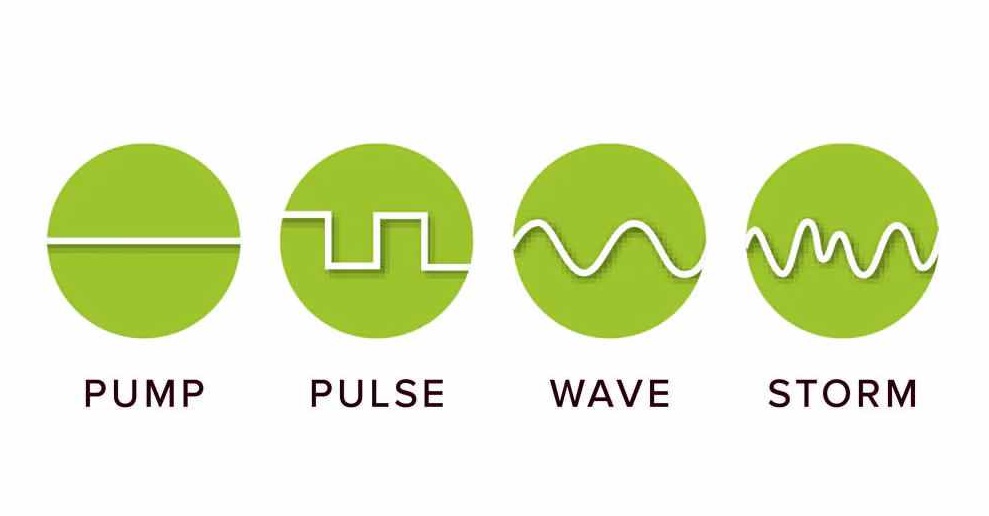

FLOW MODES
PUMP
Creates a steady flow that runs continuously giving a prevailing current and good movement in the open water areas of the aquarium, adjustable on the digital controller between the minimum and maximum power settings of 30 and 100 . Ideal in a reef situation when multiple circulation pumps are in use, mixing this flow pattern with pumps running pulse, wave or random programs can ensure good flow throughout the aquarium. Also suited to planted aquariums or fish only aquariums where constant flow is beneficial.
PULSE
The speed of the pump will alternate between a low and high power setting and can be used to set up a standing wave. The frequency and power settings can be changed on the controller . Pulse mode is well suited to corals that prefer high energy wave patterns such as those found on the reef crest.
WAVE
A constant wave output is created as the pump ramps up and down between a minimum and maximum power setting giving a sine wave effect. The frequency and power settings can be changed on the controller to adjust the length and size of the wave. This flow pattern will create a gentle wave simulating deeper reef or calmer lagoon environments making it ideal for more LPS or soft coral dominated aquariums.
STORM
A completely random wave pattern is created by the controller simulating a chaotic reef environment where the flow is constantly changing . The pump will automatically switch between constant, pulse and wave patterns at different time intervals alternating its power settings. Ideal for stirring up detritus so it can be removed by filtration.
Specification
FPRO 30
- Maximum Flow Rate : 30000 L/H
- Maximum Head Height : 10 m
- Maximum Wattage : 450 W
- Dimensions : 240mm (L) x 168mm (W) x 180mm (H) (w/o fittings or attachments)
- Rigid Pipe Adapters Included: 50mm x1 / 60mm x1
