GHL Powerbar 5.1-D-PAB
The perfect and safe functioning of the powerbars in an aquarium controller system is essential. They feature on/off switching of electrical loads for components such as heaters, cooling devices, solenoid valves for CO2 control, or stream pumps. A malfunction of classic sockets can lead to significant damage of the aquarium.
That is why the GHL Powerbars have been specially developed for the aquarium hobby. They are produced to the highest quality and security standards. All components are UL-certified and flame retardant.
ProfiLux Controllers starting with modell 3 can be connected with the PAB powerbars such as 5.1 PAB or the brand-new Powerbar 6E-PAB.
Switching safely
Depending on the ProfiLux model, up to 64 switchable sockets and a maximum of 32 dimmable sockets can be controlled separately.
- For switching they use in all powerbar models extremely robust and reliable HIC (High Inrush Current) industry-relays instead of cheap semiconductors. These relays are specified for 16 A @ 250 VAC and are able to withstand even up to 160 A for a short while, switching of critial loads such as MH-ballasts, switching power supplies or large chillers is no problem at all.
- Also the power consumption of individual loads per socket can be measured separately (versions with PAB only). The integrated LEDs indicate the switching status of the individual outlets. Fuses protect the powerbars against overload (depending on version).
- Installation on walls or in aquarium cabinets is easy due to the rear or side mounting holes (depending on the model).
Description
- Connected to the ProfiLux PAB port

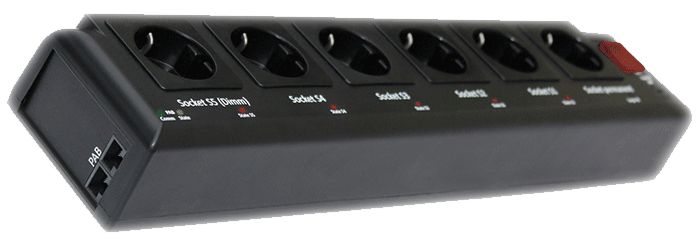

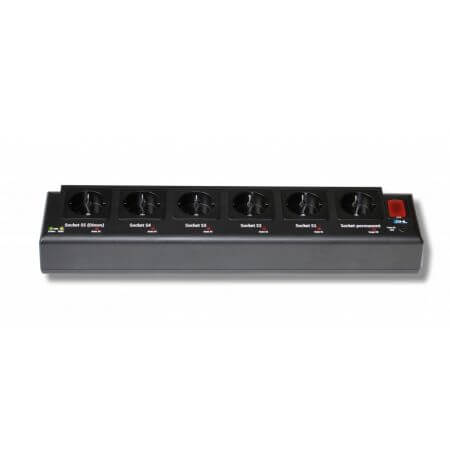

- The Powerbar 5.1 has 5 switchable connections, one of which can also be dimmed. An additional 6th outlet with permanent power (for example for ProfiLux, pumps or lamps) is also included.
- The ProfiLux Aquatic Bus makes safe and reliable communication with ProfiLux possible. Built-in surge protection and an illuminated fused switch together with LED indicators offer you the complete package and the highest level of safety.
