Kamoer - ATO ONE SE
Kamoer ATO one se is a automatic water replenisher, a good helper for the fish tank at home!
The Kamoer ATO ONE is a smart automatic water top up unit used to replenish water lost through evaporation. It comes complete with an optical sensor for accurate monitoring of the water level and a back-up float sensor. No programming is required to set up the unit, simply position the sensors on their magnetic mounts, connect the pump and away you go.
Everything needed to set up the unit is included in the kit and a third sensor is available as an optional extra to monitor the status of the freshwater reservoir.
Features
- Accurate optical main level sensor.
- Emergency failsafe float sensor.
- Magnetic sensor mounts.
- Audible and visual time out alarms.
- Led status lights.
- Optional sensor available for freshwater reservoir.
- Low voltage pump.
- Clamp on refill tube holder.
- Splashproof pump and power supply connections.
- Self adhesive foam mount pad on controller.
Specifications
- Controller dimensions 60mm (L) x 58mm (W) x 28mm (H).
- Power adapter input 230-240V.
- Power adapter output 12V 1A.
- Refill pump 12V.
- Maximum pump flow rate 500 L/H.
- Maximum pump head height 2m.
- Flexible pipe diameter 8mm x 11mm.
- Maximum glass thickness for magnet mount 10mm.
- Red, blue, and green status LED's.
- Please install the sensor correctly, otherwise the product will not work.
- The distance between the two sensors is not less than 10cm.
- Sensors may fail if not properly installed, make sure they are properly installed (or unplugged and reinstalled).
- The height difference between the make-up bucket and the sump/master tank should not exceed 1.5 meters, and the liquid level of the make-up bucket should not be higher than the liquid level of the sump/master tank.

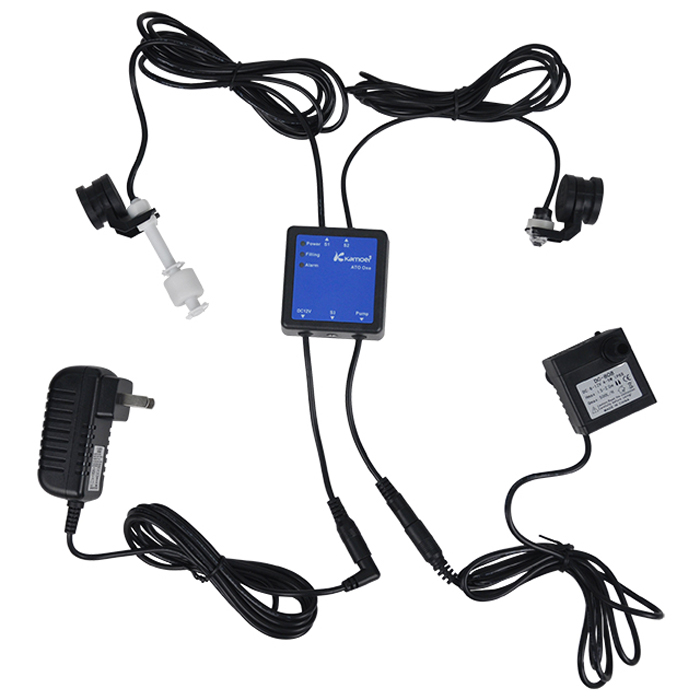

Included in the Box
- Kamoer ATO ONE controller.
- Optical level sensor.
- Emergency overflow sensor.
- 2 x Magnetic sensor mounts.
- Power adapter.
- Refill pump.
- Tube holder.
- Siphon break connector.
- 2m 8/11mm PVC flexible tubing.
- Quick start guide.
- *Optional freshwater sensor is not included*
