ReefATO+ Upgrade kit
The 3-in-1 ReefATO+ for Red Sea REEFER system!
Exceptionally reliable and smart ATO, temperature monitor and leak detector.
The ReefATO+ is designed to maintain a stable salinity and water volume in a reef aquarium by automatically replenishing the water lost due to evaporation. In addition, the ReefATO+ provides two other critical aquarium health indicators: a fully featured on-line digital temperature monitor and a leak detector.

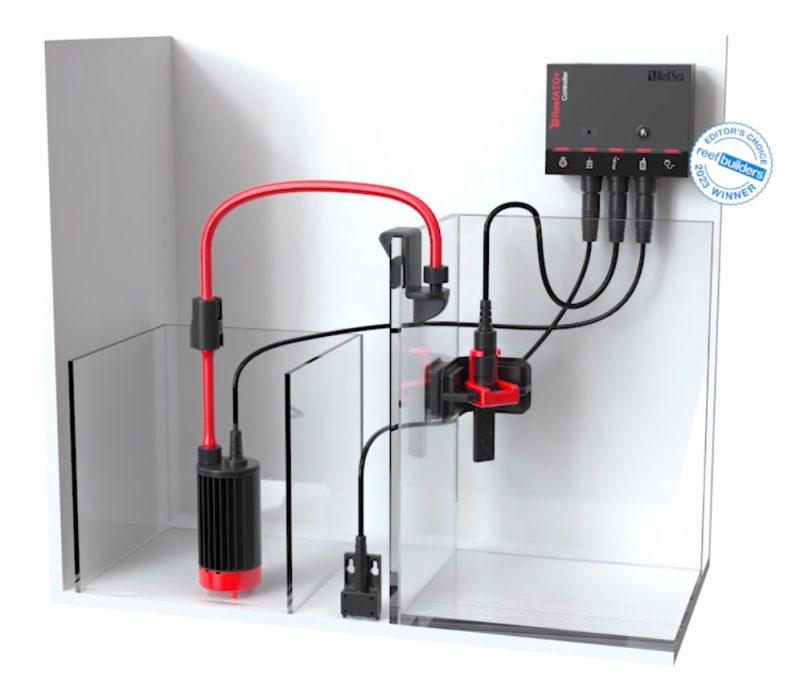

The ReefATO+ Consists of:
ATO Sensor:
Slim-line, multi-input, titanium probe, solid-state (EC technology) water level sensor, with a built in digital thermometer accurate to 0.1 degree.

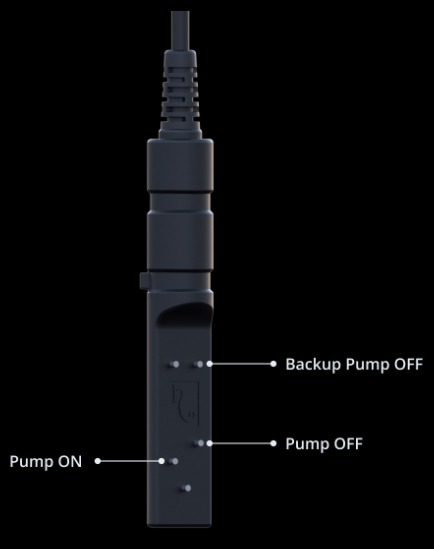

Water Level Sensor:

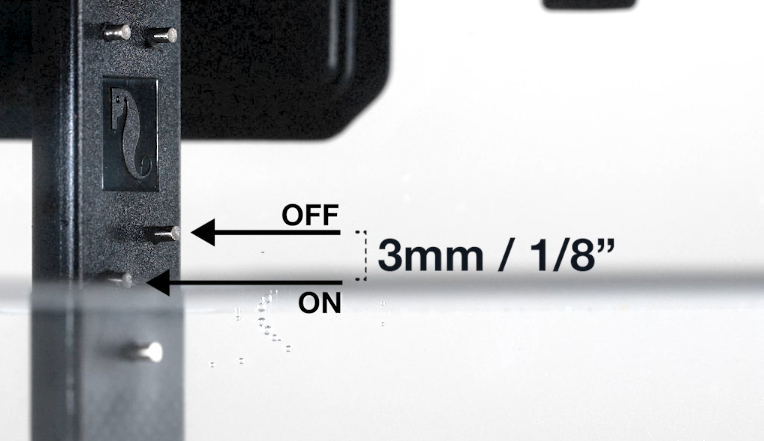

- Fail-proof (solid-state EC technology) water level sensor, with built-in back-up pump-OFF probes located 2.5cm / 1” above the normal pump-OFF point.
- The full array of the Reef-Spec titanium probes gives an indication at all times of the actual water level relative to the sensor, which can be seen on the ReefBeat App at all times.
Temperature Sensor, Logs and Notifications:
- The temperature sensor integrated in the ATO+ sensor has been pre-calibrated to give an accuracy of ±0.1°.
- The ReefBeat App allows you to set a narrow “desired” temperature range, and a slightly wider “acceptable” range, that will be seen on-line in the ReefBeat App and in the full temperature logs.
- In the event that the temperature goes outside the acceptable range you will get a notification to your smartphone.
- The detailed logs will show you the minimum, maximum and average temperatures at 15 minute intervals for the past 28 days.

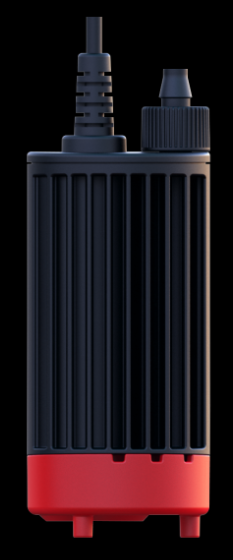

ATO Pump:
Quiet, variable flow, serviceable ATO pump (6-10W), diameter 4.5cm/1.8", max flow 300 lph/75gph, max head 2.5m/8´.
- Quiet, variable flow, 12 vdc ATO pump.
- Cylindrical design with diameter of 4.5cm / 1.8” to fit inside standard jerrycans.
- Max flow rate 300 lph / 75 gph, Max head 2.5m / 8’, power 6–10W.
- Pump performance monitor in the controller will shut down the pump automatically and let you know through the ReefBeat App if it is not connected, stalls or RO reservoir runs dry.
- Pump speed is automatically adjusted according to your installation to maintain a flow rate of approximately 72 lph / 18 gph ensuring a splash proof and quiet flow of water into the sump.
- The noise damping rubber impellor chamber cover and impellor can be removed for pump maintenance.
- Includes lock-nut on the outlet hose barb for secure connection to the silicon tubing.

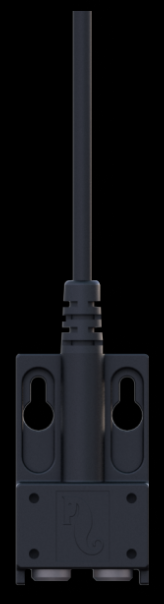

Leak Detector:
Higly sensitive, REEF-SPEC, titanium probe leak detector for RO and seawater, triggers notifications to App with optional audible alarm.
- If a leak is detected the ATO Auto-fill is immediately disabled, and after a few seconds to confirm that the leak persists, the controller sounds an optional audible alarm and sends a notification to your mobile device.
- Connect the Leak Detector to the Emergency Quick-action for the aquarium and ReefBeat eco-system will automatically shut down other ReefBeat devices such as the ReefRun return pumps.

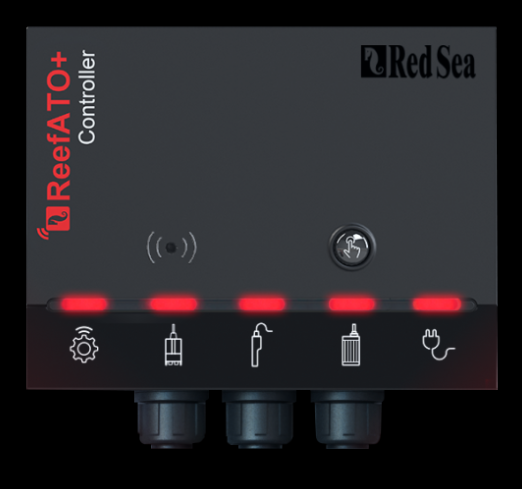

Smart Controller:
The micro-processor monitors and reliably controls all of the components and connects them to the ReefBeat eco-system.
Complete Installation Kit:
- Sensor holder.
- 3M /10′ – 1.5mm / 1/16″ thick silicone tubing ID 5mm / 0.2″.

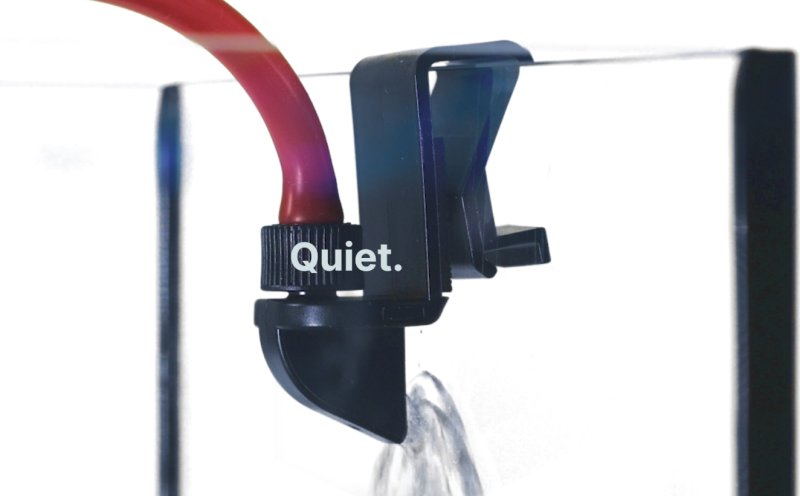

- Silent flow – Tube holder, clips on 4 – 12mm / ½” glass.
Safe:
- l-proof (solid-state EC technology) water level sensor with built-in safety shutoff.
- Automatic shut-down if the sensor is not connected, if the pump runs significantly longer than normal, if the RO reservoir runs out of water or if a leak is detected.

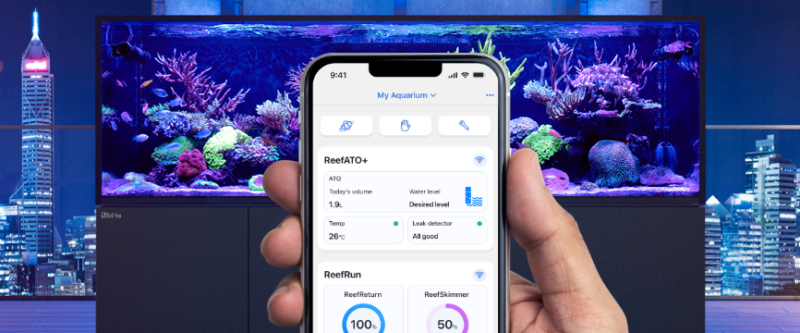

Smart:
- Home page: Current status of all features of the ReefATO+.
- ATO Level: See the current water level in the pump chamber.
- Top-off Level: Hourly record of number of fills and volume of water added to your aquarium for the last 28 days.
- Temp. Log: Detailed record of minimum, maximum and average temperatures for the last 28 days.
- Temp. Ranges: Set the desired and acceptable temperature ranges for your aquarium.
- Leak Settings: Settings preferences for the Leak Detector.
- Peace of Mind: Receive notifications if the temperature is outside acceptable range, if there is a leak or if your RO reservoir has run dry.

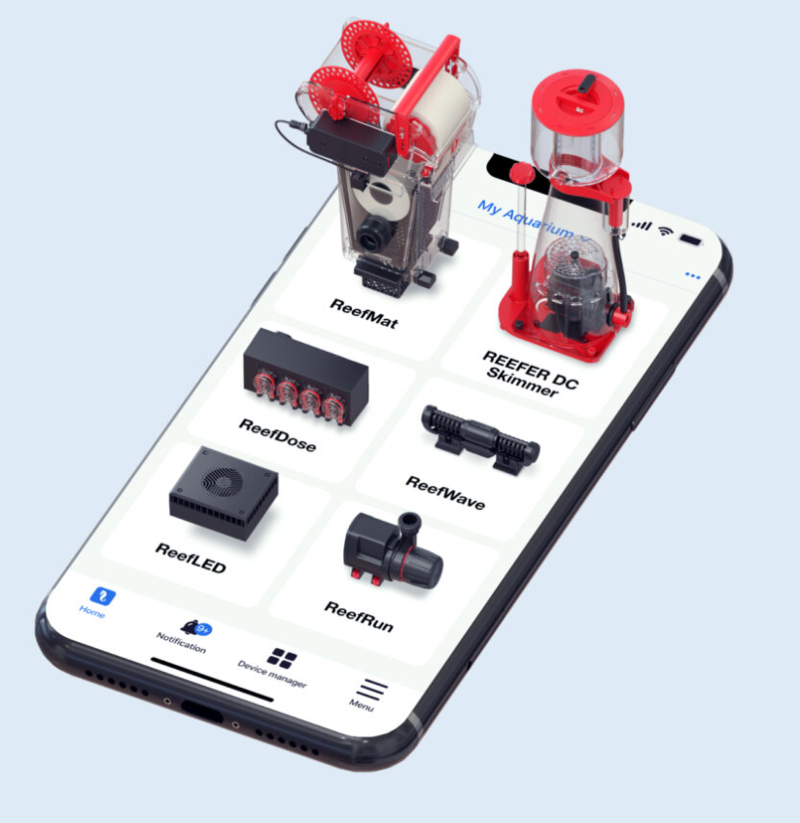

ReefBeat App:
One App to Control Them All!
ReefBeat integrates all of Red Sea’s smart devices into one smart, synchronized eco-system that you can fully control from the palm of your hand, providing you with extra peace of mind, as just a quick glance will update you on the status of all your devices.

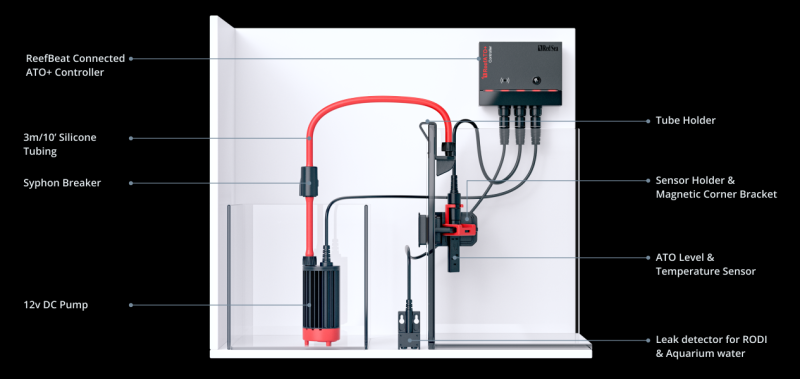

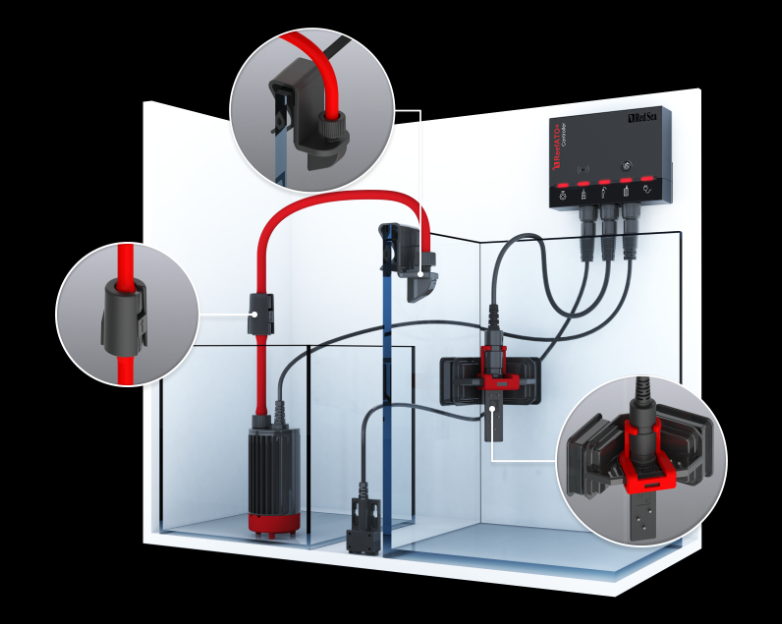

Installation:

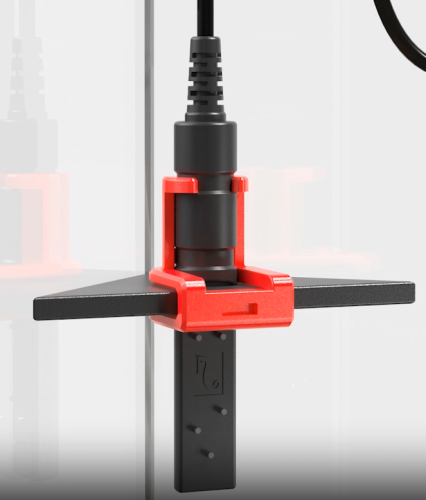

ATO Sensor:
- Secure and easy mounting in Red Sea REEFER systems.

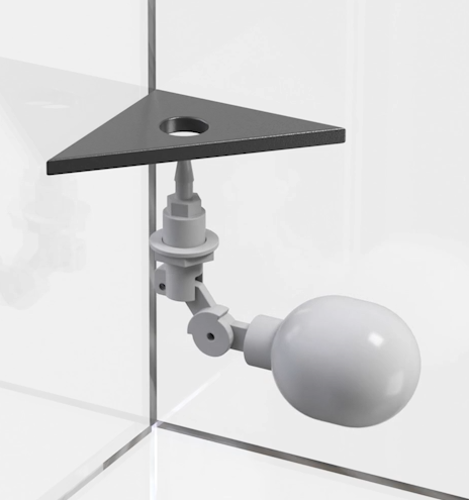

For the existing owners of the Red Sea REEFER system, the ReefATO+ upgrade kit is a direct replacement for the standard gravity fill float valve system:

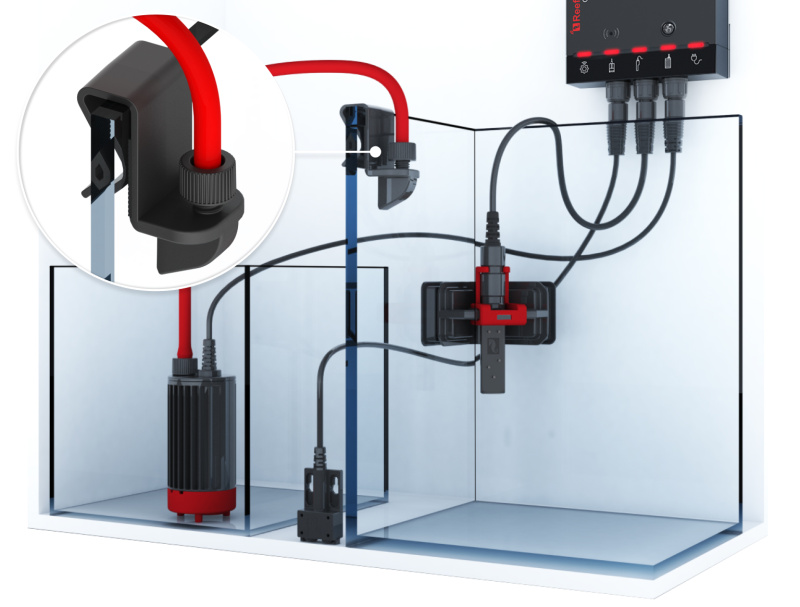

Tube Holder:
- Clips on top rim of sump – up to 12mm ½” thick.

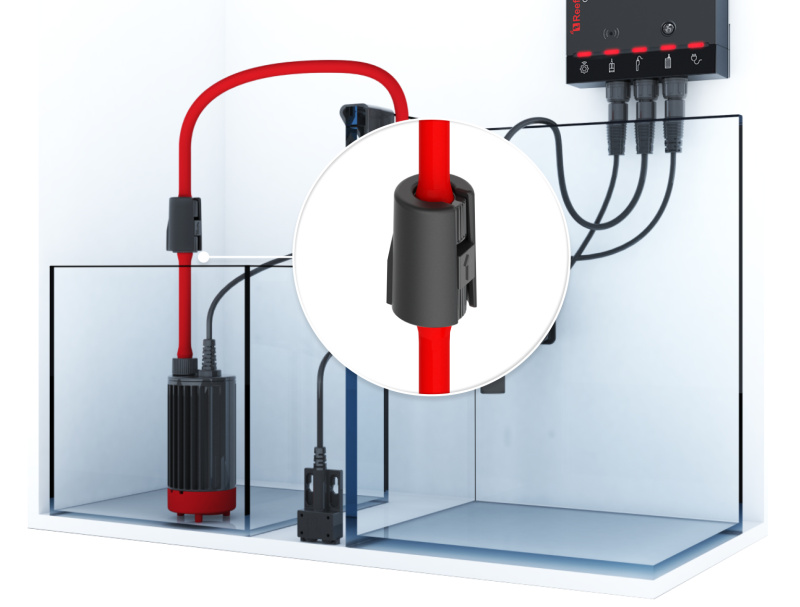

Syphone Breaker:
- Prevents RO water from being siphoned to sump if the tube holder is lower than the ATO pump.

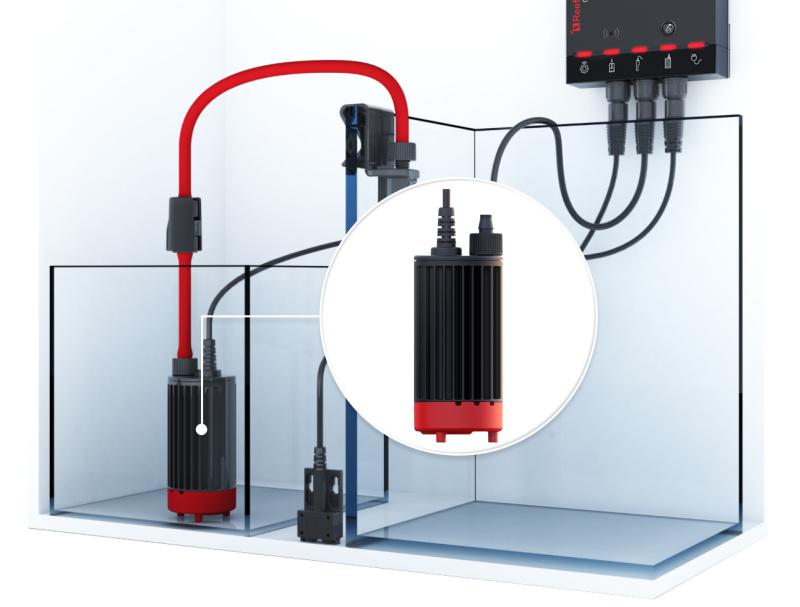

ATO Pump:
- Cylindrical design with diameter of 4.5cm / 1.8” to fit inside standard jerrycans.
