RF Dosing pump CR - pump for Ca reactor
Smart technology for special tasks
The Dosing pump CR is a modern peristaltic pump based on a stepper motor, dedicated to a calcium reactor or anywhere precise continuous dosing is required (without dividing into doses). The Smart Reef application enables remote management of dosing, characterized by an intuitive panel and efficient WiFi communication, allowing you to stay up to date with what’s happening in your tank.
The CR dosing pump operates on the basis of brand new, proprietary peristaltic pumps developed by the Reef Factory team. Their design is engineered to meet a series of requirements that devices dedicated to marine aquaristics should fulfill. They are characterized by high dosing precision and the longest trouble-free operation period possible thanks to the highest quality components, and they are also very quiet.
Key features:
- Flow regulation with an accuracy of 0.01 ml/min
- Pump designed for continuous operation
- Pump performance adjustable in the application from 0.1 to 62 ml of liquid per minute
- Quiet and precise operation of proprietary dosing pumps by Reef Factory
- Precise flow regulation independent of pressure changes
- High-precision stepper motor
- The used tubes are made of high chemical resistance BPT material
- Compact size and modern design
- Easy installation in the sump using a DIN rail
Modern device installation:

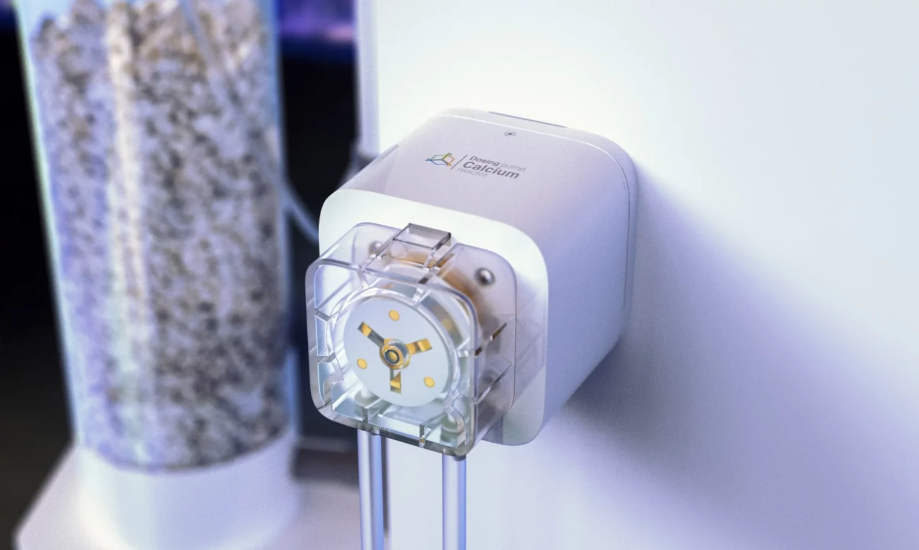

To meet the needs of aquarists, they have improved the method of placing equipment in the tank. The latest equipment from Reef Factory has an innovative mounting system based on a DIN rail. This is an extremely convenient and customizable solution that makes it easier to keep the cabinet in order.

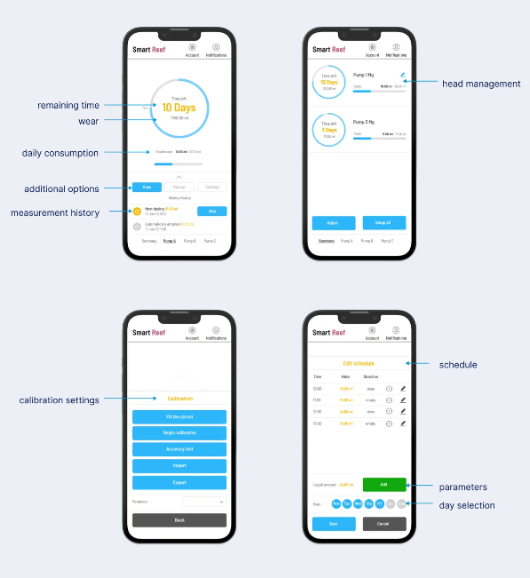

Smart functionalities in the Smart Reef app:
- Free and user-friendly Smart Reef application
- For Android, iOS, or computer (browser-based support)
- Creation and modification of flexible dosing schedules
- Automation of the dosing process based on real-time parameters levels
- Ability to specify the direction of pump rotation
- Quick modification of dosing settings and the ability to add extra doses outside the schedule
- Dosing in ml or percentage (%)
- Clear history of dosing activities
- Remote aquarium management from anywhere in the world, 24/7
- Information about the remaining amount of liquid in the container for dosing
- Intuitive and fast calibration process ensuring high dosing precision, with push notifications reminding about the need for recalibration
- Import and export of dosing schedules
Technical specifications:

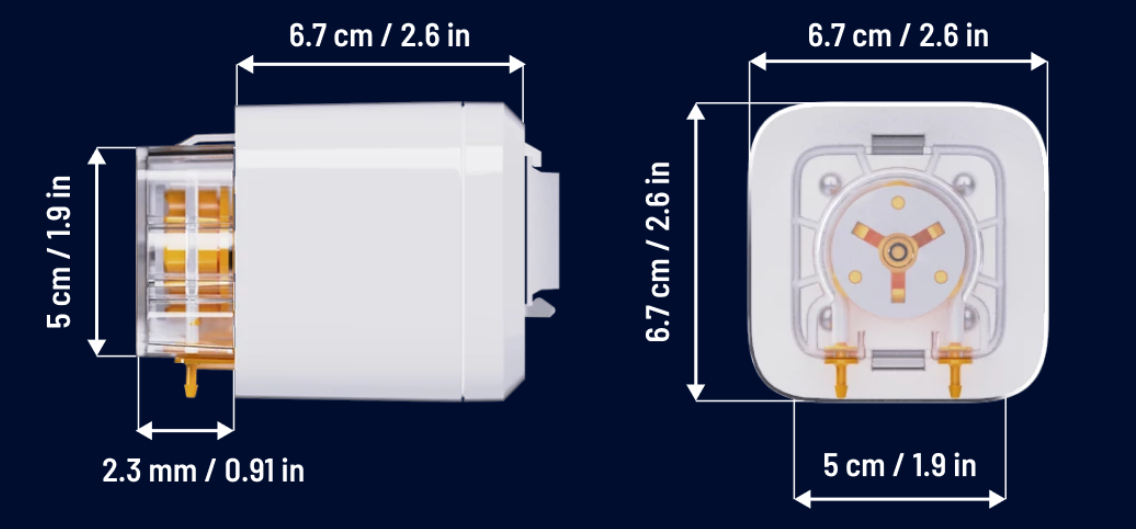

- Dimensions HxWxD: 67 x 67 x 67/ 2.6 x 2.6 x 2.6in
- Head dimensions HxWxD: 49 x 49 x 23mm / 1.9 x 1.9 x 0.91in
- Dosing accuracy +/- 0,01ml
- DIN holder 8 mm / 0.30 in
- Number of heads 1
- DIN rail 1
- Supply voltage 100-230 VAC 50/60 Hz (AC-DC adapter included). Power consumption 0.5-5W max.
- Power supply 12V 1A
- The devices are CE certified
- Max. water hose length 2 m
