RF Smart Tester
Accuracy, quality, reliability!

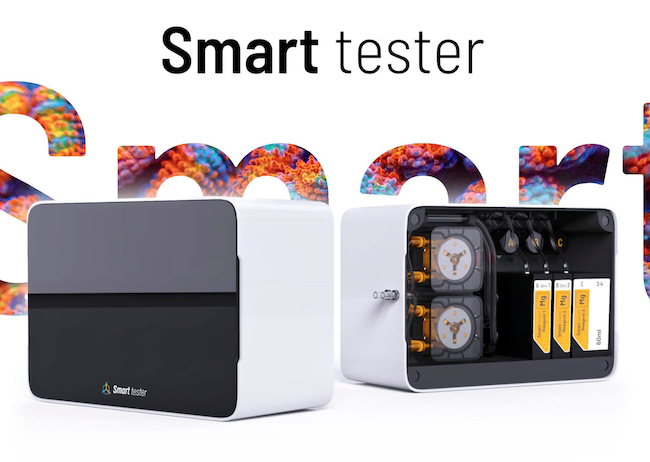

Introducing the revolutionary Smart Tester - an advanced device for testing key water parameters in marine aquariums. This fully automated and precise tester provides instant and accurate results of the seleceted parameter, which can be easily accessed via the Smart Reef app.

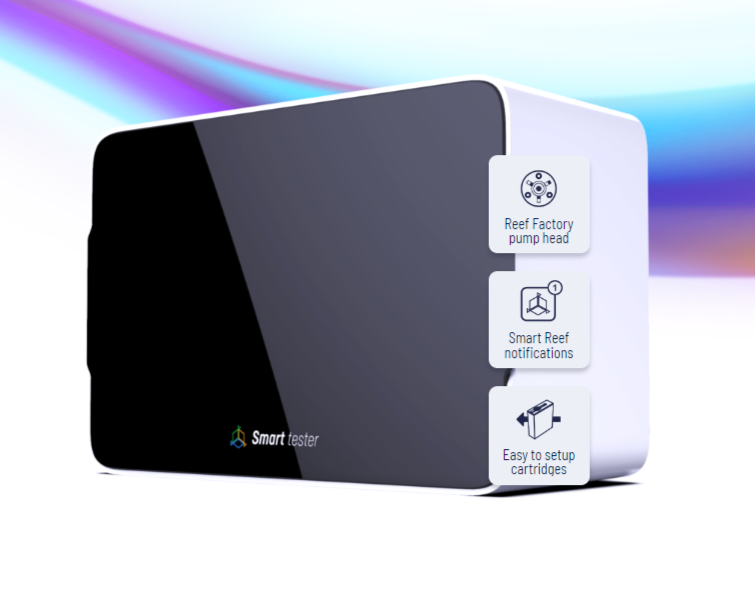

Key features
- Managed remotely with the Smart Reef app
- Up to 160 tests on one set of reagents*
- Fully automated analysis
- Quiet and precise operation of the original, in-house manufactured dosing pumps
- Quick replacement of the tested parameter based on easy-to-install reagent cartridges
- Uses only 50 ml of water per single measurement
- Built-in auto-calibration of the device
- Compact size 210 x 140 x 95mm and modern design
- Easy installation in the sump using DIN rail
With the ability to schedule measurements and easily replace reagent cartridges, the Smart Tester makes monitoring tank parameters a breeze. The device is designed so that calibration is rarely performed and cleaning is automatic, providing unparalleled convenience.
From now on, not only will you be able to automate the testing of the selected parameter P04, N03, Ca, but also, with the help of actions that integrate Smart Tester with dosing pumps, automate the maintenence of the selected parameter at a certain level.

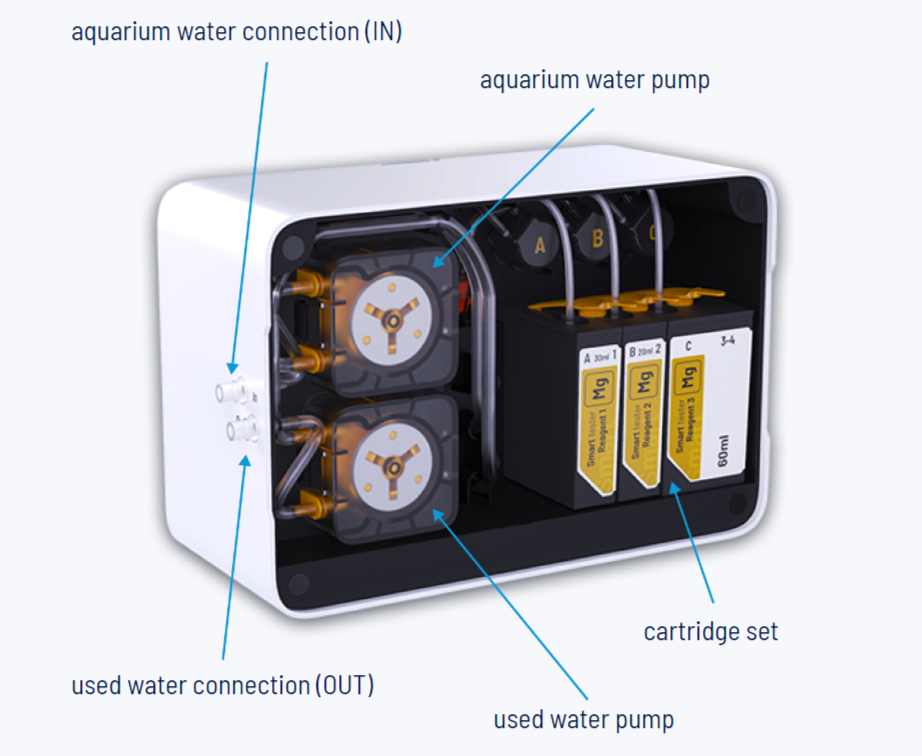

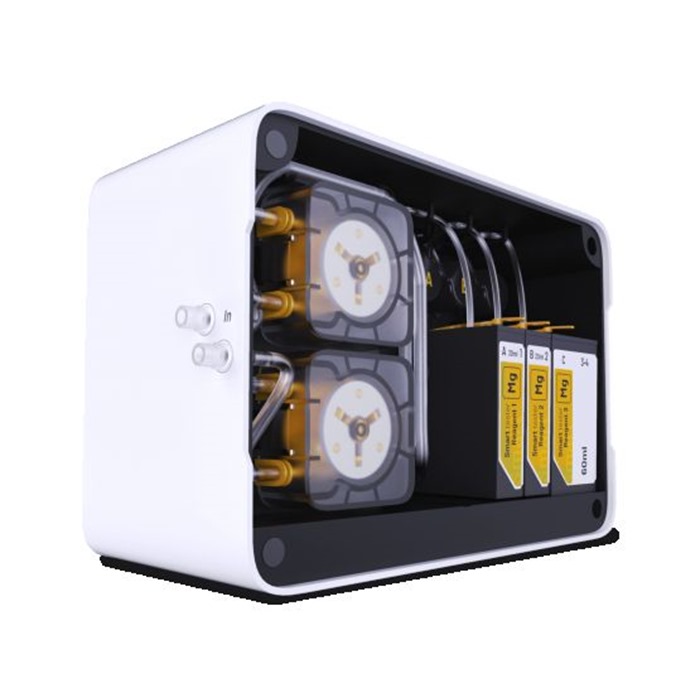

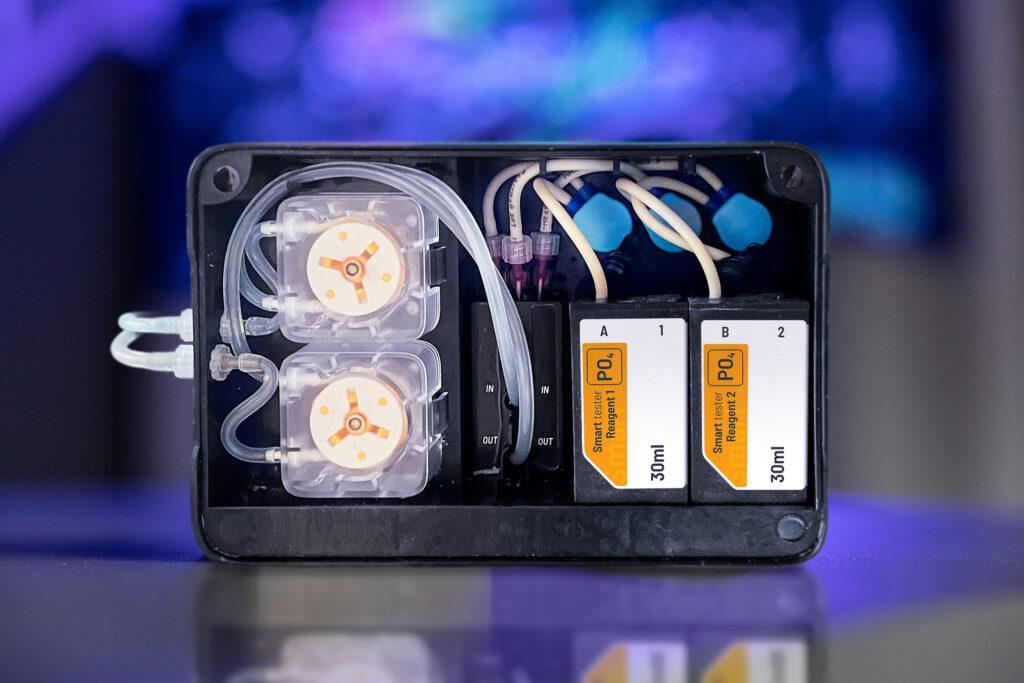

Peristaltic pumps
Smart Tester works on the basis of an all-new, in-house manufactured, peristaltic pumps, developed by the Reef Factory team. Their construction is designed to meet a number of requirements that should be met by devices dedicated to marine aquaristics. They are characterized by high dosing precision and the longest possible of failure-free operation, and they are also very low-noise.

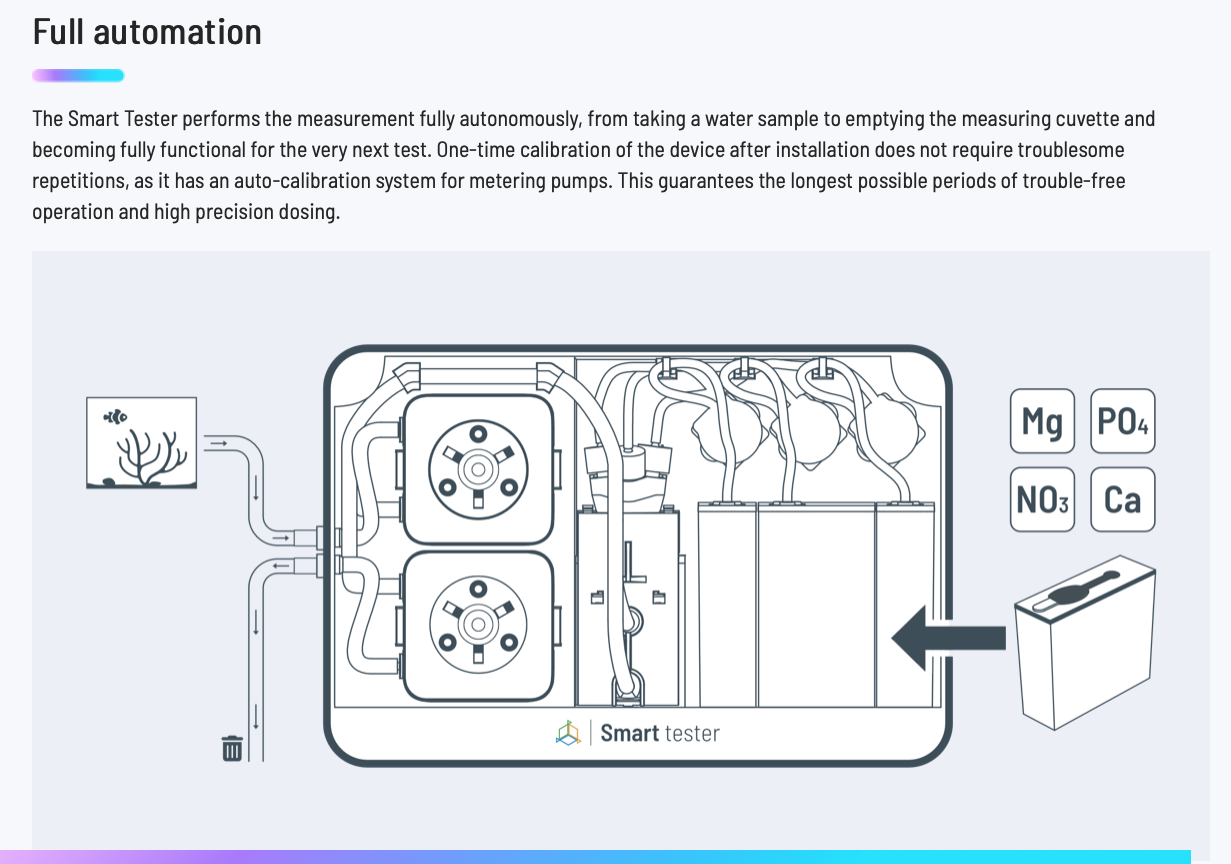

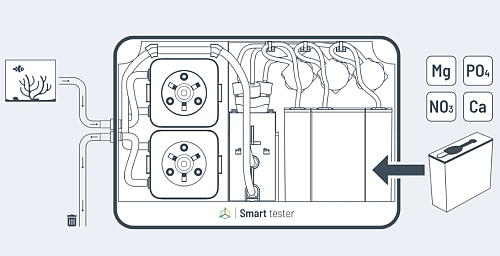

Full automation
The Smart Tester performs the measurement fully autonomously, from taking a water sample to emptying the measuring cuvette and becoming fully functional for the very next test. One-time calibration of the device after installation does not require troublesome repititions, as it has an auto-calibration system for metering pumps. This guarantees the longest possible periods of trouble-free operation and high precision dosing.

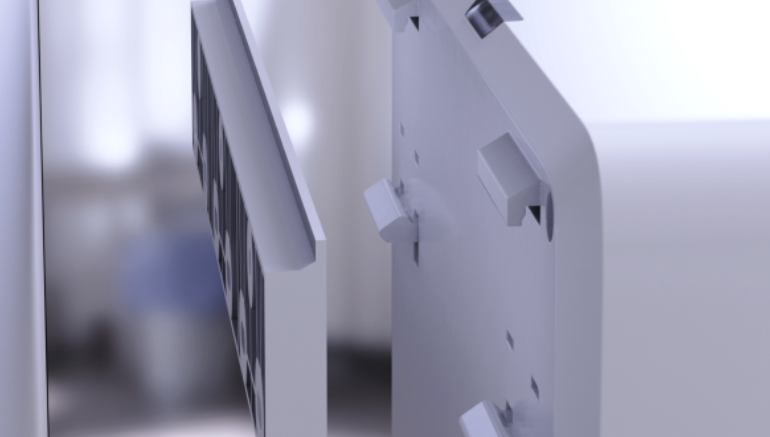

Modern device installation
To meet the needs of aquarists, we have improved of placing equipment in the tank. The latest equipment from Reef Factory has an innovative mounting system based on a DIN rail. This is an extremely convenient and customizable solution that makes it easier to keep the cabinet in order.

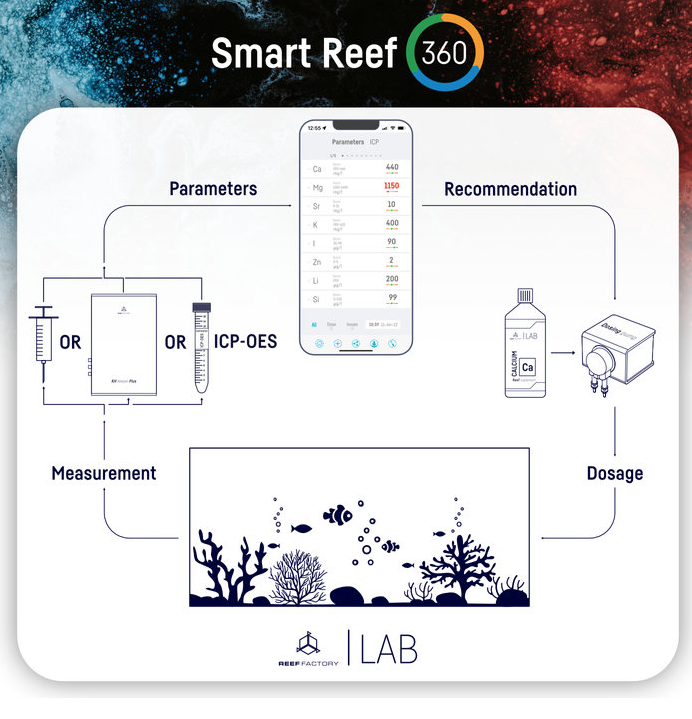

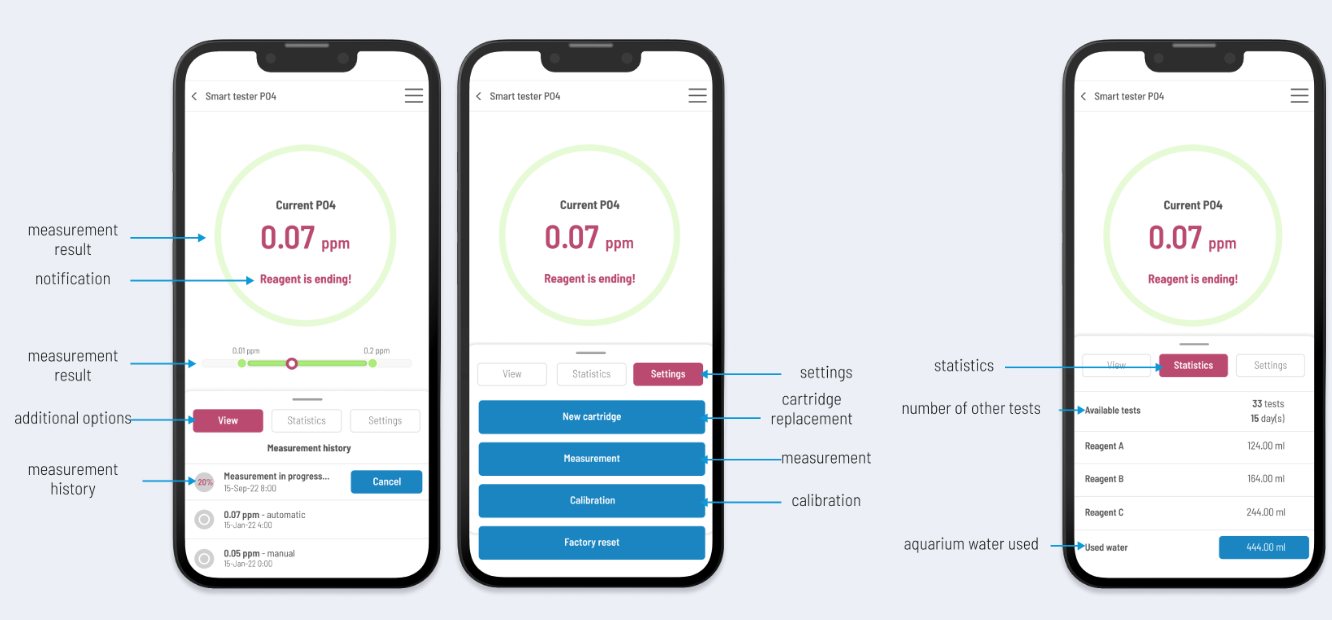

Smart functionalities in the Smart Reef app
- Information about current reagent levels
- Clear measurement history allows you to compare changes in the tank
- Ability to automate processes using a m easurement schedule and special promotions
- Accurate meter of consumed water
- Option to run the test outside the schedule
- Notifications about upcoming replacement of the measurement set and detected deviations
- Clear wizard that facilitates the maintenance process of the measuring vessel
- Refill water with automatic actions

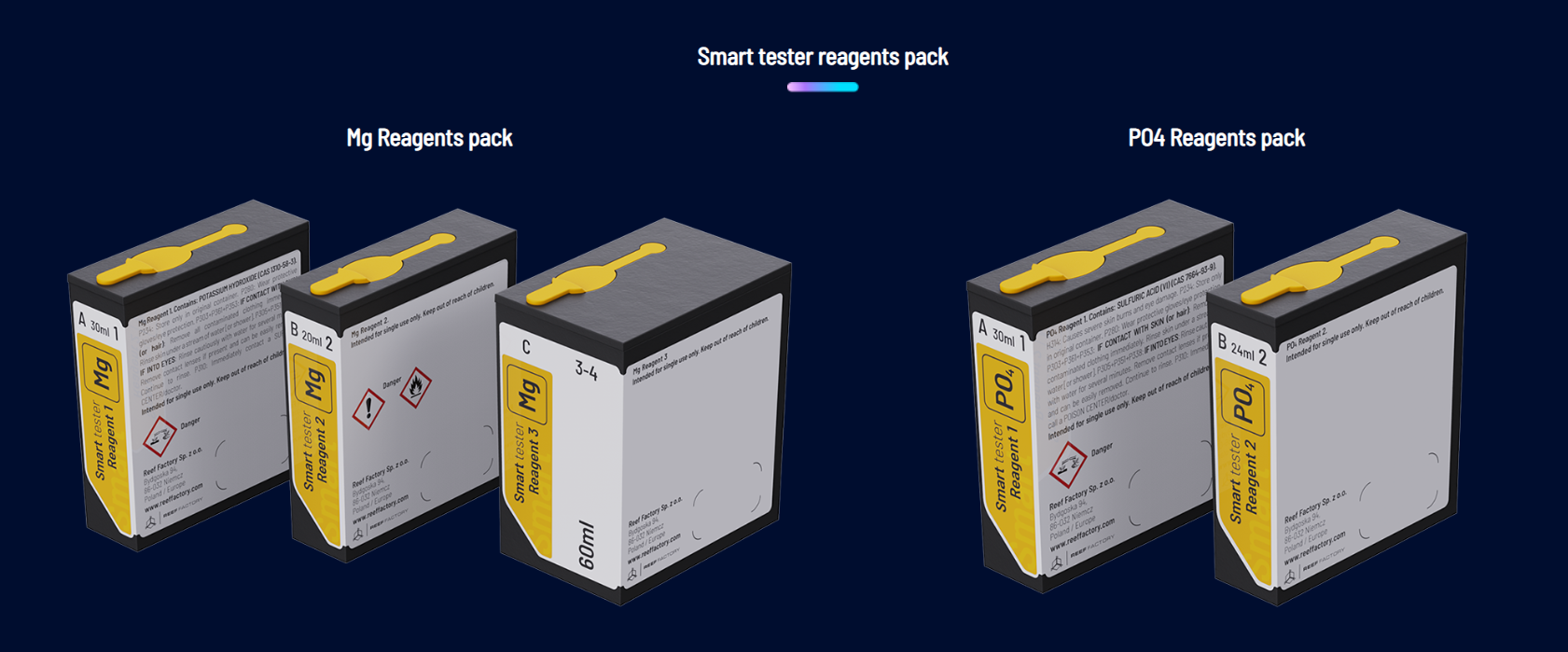

Special reagent packs for Smart Testers
To measure the selected parameter, you need to purchase a set of special reagent cartridges for the Smart Tester
Mg – measurement of magnesium:
- Number of tests from one set: ~50 (the number depends on the concentration of Mg ions)
- Measuring range: 800-1800ppm
- Measurement resolution: 10 ppm
- Test duration: ~40-60 min
PO4 – measurement of phosphates:
- Number of tests from one set: 160
- Measuring range: 0.00-3.00 ppm
- Measurement resolution: 0.01 ppm
- Test duration: ~40 min
- The range of Smart Tester Reagents pack cartridges will be successively expanded with more test kits for relevant aquarium parameters.

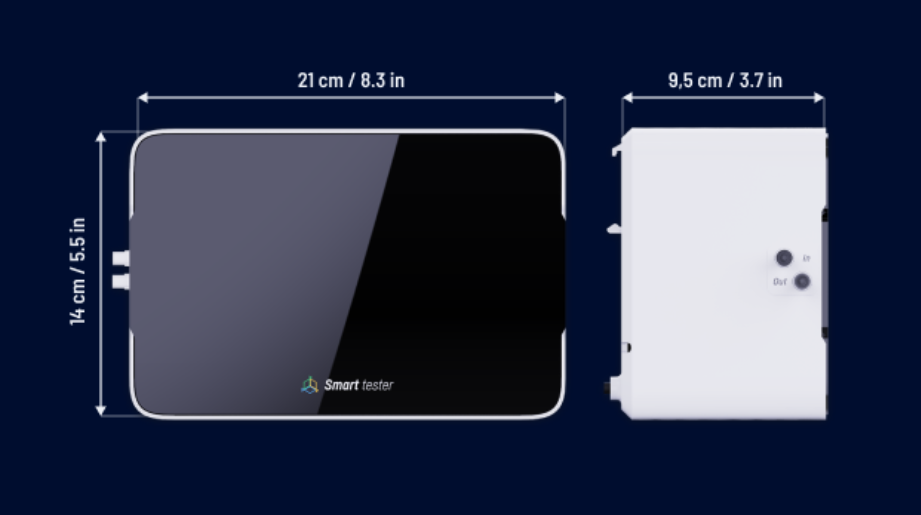

Dimensions
- Height: 14cm (5.5")
- Width: 21cm (8.3")
- Depth: 9.5cm (3.7")
Technical specifications
- Power supply: 110-230V AC 50/60Hz
- Power consumption: 0.5-5W
- WiFi communication: 2.4 GHz
- Bluetooth communication: BLE 5.0
- Water connection: 2x luer lock
- Maximum length of water hose 2m
- Operating temperature: 20-30 °C
- Ambient humidity: 0 to 95% RH
- Devices are CE certified
Package contents
- Smart Tester measuring device
- Measuring cuvette together with magnetic pill
- A set of drippers together with an assembly tool
- Power adapter AC 110-230V
- DIN type mounting rail
- Water hoses 2x2m with adapters
- Water filter together with mounting system
- RO 50ml tank for rinsing the drip system
- Additional mounting accessories and spare parts
