VCA 1" Random Flow Generator Nozzle w/1" Modular hose fitting
Creates a random flow pattern in your Large Reef tank or Pond with no moving parts!
- Female Slip Fitting for standard 2,5cm (1in) schedule 40 PVC pipe with an O.D. of 33.4mm (1.315in)
- Easy to install – requires not tape or glue
- Printed in Reef-safe PETG plastic
- PATENT PENDING DESIGN
Flow recommendations:
- The RFG Nozzle will handle far more flow than the "Optimal" LPH (GPH) recommendations, so we encourage you to experiment and test the limits of the RFG Nozzles.
- Model 1in RFG
- Minimum LPH 1212-1515 (GPH 320-400)
- Estimated Optimal LPH 2726-3786 (GPH 720-1,000)
A Random Flow Generator. With No Moving Parts:

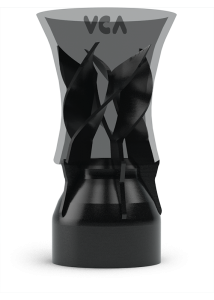

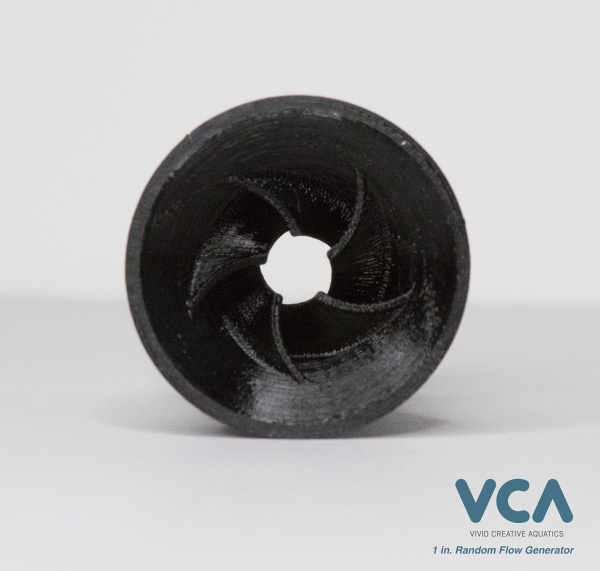

- The internal structure of the RFG Nozzle is comprised of a 5-vane helix that spirals nearly the entire length of the nozzle.
- Each vane of the helix is connected to an eductor at the base. Together, they form a set of internal channels.
- The channels work to randomly direct the water in different directions as it exits the nozzle.
1 in. PVC Slip Fitting:

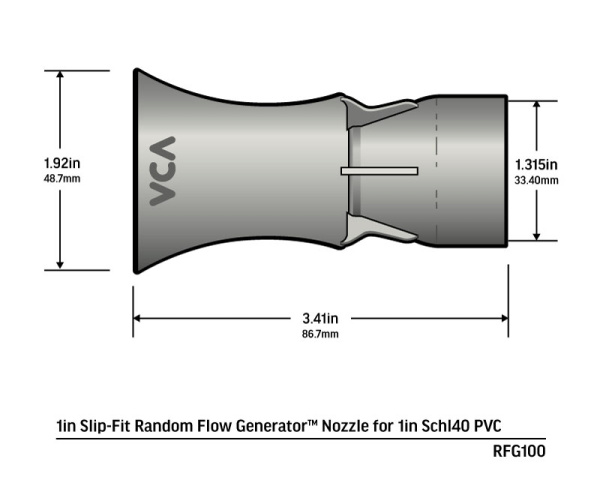

- The RFGS100 is designed to snugly fit on the end of standard 2.5cm (1 in.) schedule 40 PVC pipe with an outer diameter of 33.40mm.
- No glue and no re-plumbing – just slip it on.
The Random Flow Generator® Nozzle
- The Only Random Flow Device With No Moving Parts.

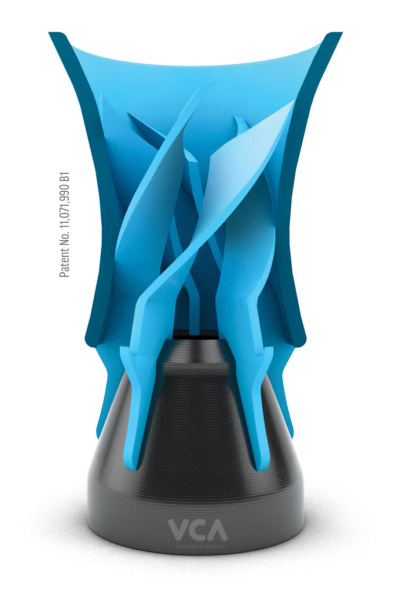

- The unique patented internal design of the Random Flow Generator® by Vivid Creative Aquatics, leverages fluid dynamics to randomly alter the direction of the flow as it exits the nozzle.
- This internal helix design, pulls the central jet in on of 5 possible direction, but in only one direction at a time.
- The result is a broad wave-maker like motion but with no moving parts to wear out, no noise and no addition heat generated.
- The Random Flow Generator® or RFG Nozzle can help to create a more natural, randomized flow pattern within an aquarium, pond, or other bodies of water.

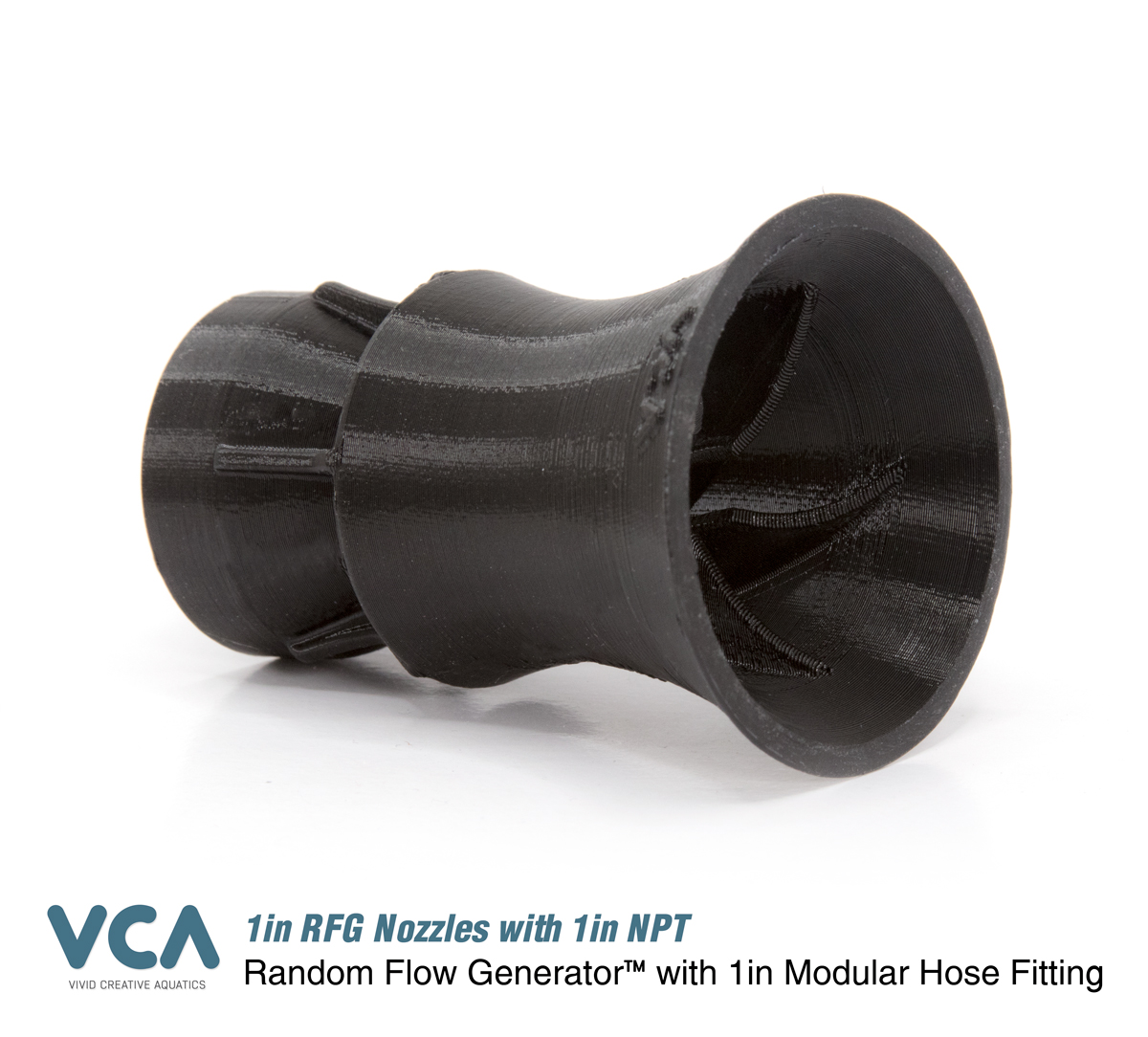

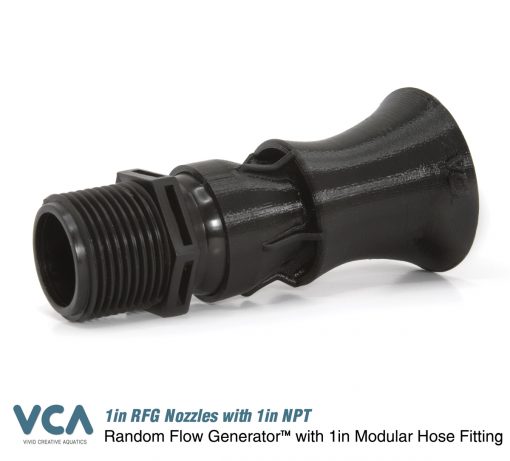

Easy-Snap Fitting:

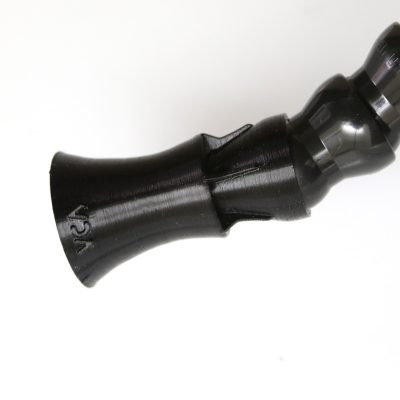

- This Reandom Flow Generator Nozzle is desgined to snaps onto a genuine Loc-Line® modular hose fittings. No tool required.
