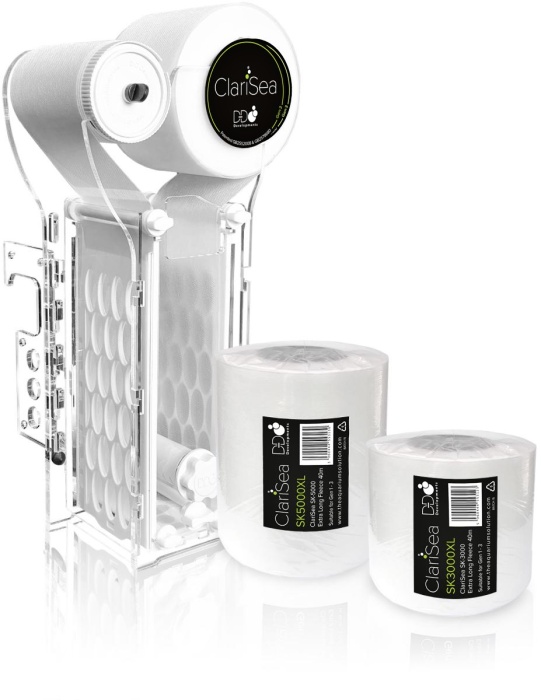

ClariSea 3000 G3 Automatic fleece filter (~3.000L/h)
The ClariSea fleece filter is an ultra compact, patented, high efficiency water filtration system, which continuously removes suspended particles such as micro algae, detritus, food, organic waste and gravel dust from the water column to improve water quality and clarity.
The ClariSea design has been continuously developed and improved over 4 years, and is suitable for use in both marine and freshwater aquariums, fish-breeding and coral propagation systems.
BRILLIANTLY CLEAR WATER
A ClariSea filter will completely replace the need for high maintenance filter socks and result in brilliantly clear water in your aquarium.
LIGHT PENETRATION
The use of a ClariSea fleece filter will ensure the highest possible filtration efficiency for optimal light penetration and growth of corals and plants.
REDUCED ACCUMULATION OF ORGANIC WASTE
Continuously removes detritus & organic waste from the water column preventing breakdown to nitrate & phosphate in aquariums.
REDUCED LOAD ON PROTEIN SKIMMER
The ClariSea fleece filter dramatically reduces the load on protein skimmer by removing even the smallest of particles.
REDUCED MAINTENANCE
Constant filtration results in reduced maintenance of pumps, wave makers and protein skimmers, plus... no more socks to clean.
NO MORE DETRITUS
A ClariSea fleece filter will noticeably reduce the accumulation of detritus in your aquarium substrate and sump.
Features
- Extremely small installation footprint – will fit more aquariums without sump modification
- High volume filtration capacity – up to 3000 L/hr
- Removes the requirement and maintenance issues of filter socks
- Reduces nitrates and organics in the aquarium
- Improves water quailty and clarity
- Multi-function smart controller – automatically advances dirty fleece.
- Audible & visual alarms for end of roll and filter jam/float switch/overflow errors. Prevents continuous wind-on of roll
- Built in fail-safe overflow – to prevent flooding
- Simple-to-change fleece, without removing ClariSea from sump
- Special 40m extra long fleece roll – phosphate free and low-odour
- Long roll life – expected 8-10 weeks after initial dirt removal
- Quick release silencer/splash plates – for quiet operation, reduced salt creep and easy cleaning & maintenance
- Water bypass system – for total water management
- Inlet adaptor connects to 1”, 32mm and 40mm pipe diameters Additional
FEATURES OF THE GEN 3
- Fully constructed body – for easier and faster installation
- Upgraded motor & cruciform
- Top rollers with guides – for lower fleece/motor tension
- Easier roll changes with the new drop in fleece holder and dirty roll removal tool
Specifications
- Recommended flow rate: 3,000 l/h (800 US gph)
- Optimal water depth for longer fleece life: 10cm (4”)
- Particle size removal: down to 20 microns
- Minimum submerged water depth: 5cm (2”)
- Maximum submerged water depth: 20cm (8”)
- Hang-on bracket height adjustment: up to 14cm (5,5”)
- Recommended aquarium size: up to 600lt (160 USG)
- Universal Inlet connection: 32mm / 40 mm / 1"
- Filter fleece: 10cm (4”) width
ClariSea Smart Controller
The ClariSea unit includes a smart controller for the automatic and manual advance of the fleece roll. This will also show visual and audable alarms if a potential error is detected during operation.
Smart controller buttons
Play button
- Press and hold to manually advance the motor and roll on the fleece.
Alarm button
- Press alarm button for 1-2 seconds to turn off audible alarm. Alarm condition will still be present with Red LED still flashing. The automatic advance of fleece will be disabled but the play button will still function as manual advance for the fleece.
- Pressing the alarm button for 5-7 seconds will fully reset the controller, completely clearing the alarm state and resetting the unit into normal operation mode. Disconnecting power for 30 seconds will also reset the controller and clear the alarm state.
Smart controller LED indicator functions
Normal operation
Initialisation (Power on or reset):
- Blue/Red LED will both flash 5 times, an audible alarm will sound with each flash if the smart controller is reset or powered on
- Blue LED will remain on to show that the unit is in normal standby mode.
Motor activation
- When the motor is activated the blue LED will flash.
Alarm indicators
If the roll cannot advance or the float is activated for more than 5 seconds.
- Red alarm LED will flash
- Audible alarm will sound for 2 seconds every 5 seconds
- Automatic advance of fleece will be disabled until the controller is reset.
If the float is not activated for 8 hours indicating the fleece is possibly empty.
- Blue/Red LED both flashing, audible alarm will sound for 1 second every 2 seconds
- Automatic advance of fleece will be disabled until the controller is reset.
If there is a possible installation error and the float is not triggered with 48 hours after initial set-up or reset.
- Red LED will flash at 10 second intervals the audible alarm will sound with each flash
- Automatic advance of fleece will be disabled until the controller is reset.
Optional Clean Roll Positioning Kit
An optional clean roll positioning kit is available from D-D product stockists to fit the ClariSea SK3000 Gen3.
This will make it possible to change and adjust the clean roll mounting point allowing the unit to be installed closer to the side of a cabinet or where space is restricted. In situations where the ClariSea unit is mounted low in a sump the optional positioning kit is also usefull to move the clean roll into a higher position away from water splashing and for easier acces when changing the roll.

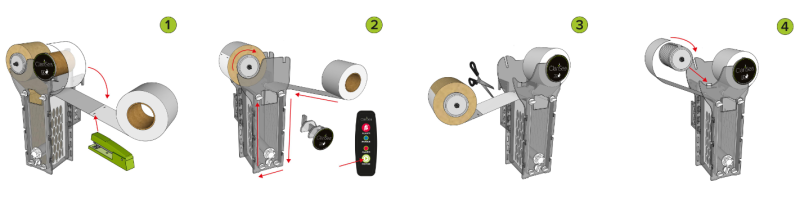

Fast & Simple Roll Changing
Dimensions
